Next-Generation Flagship Real-Time Simulator

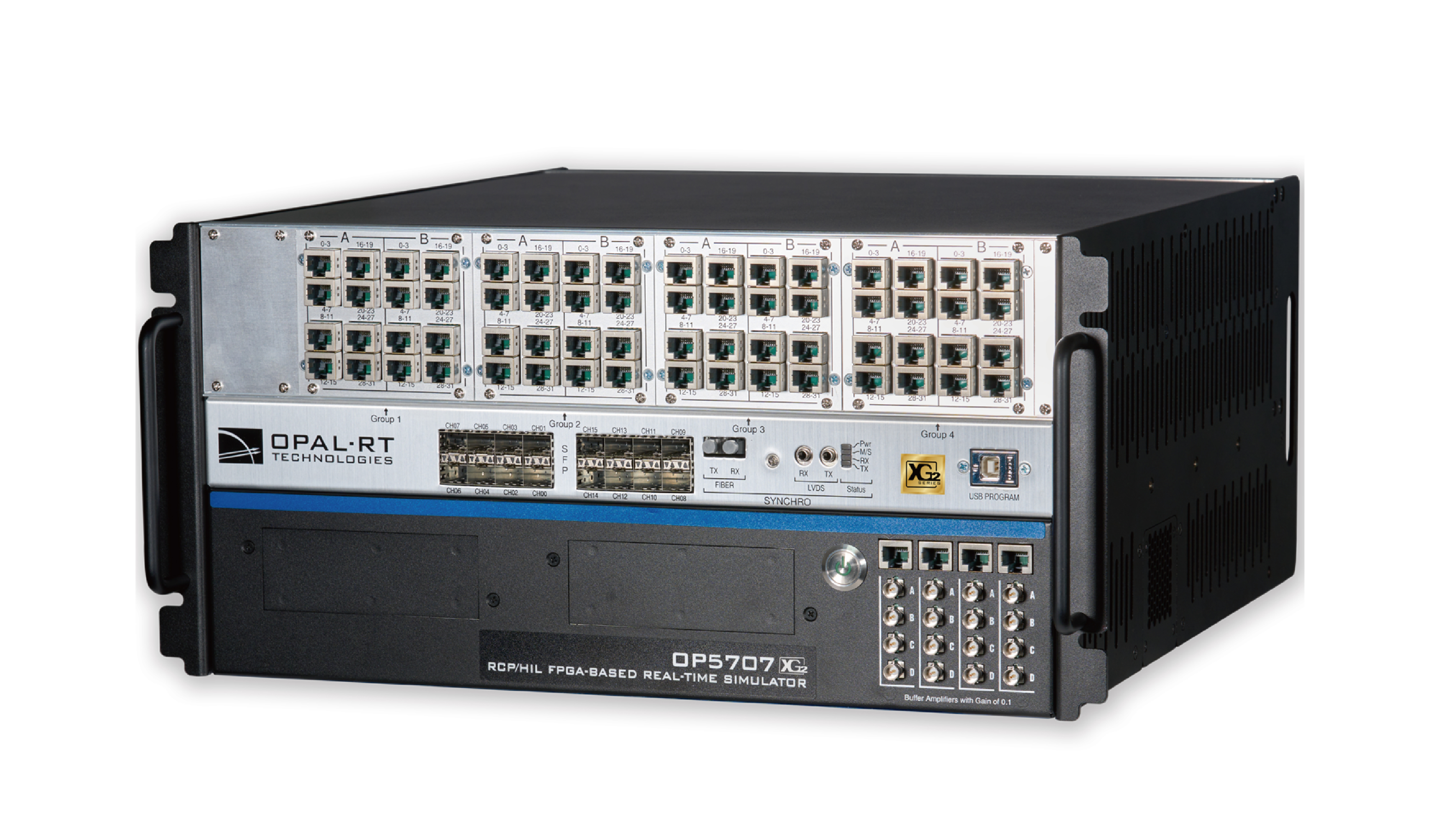

The OP5707XG2, as OPAL-RT's new-generation flagship model, is equipped with up to 8/16 high-performance Intel® Xeon® Gold processor cores and a Xilinx® Virtex® 7 FPGA board. Its onboard expansion slots can accommodate up to 8 analog or digital I/O boards, supporting up to 128 analog or 256 digital high-speed I/O channels. Meanwhile, it features 16-channel high-speed SFP optical fiber communication, meeting the top-tier requirements for Hardware-in-the-Loop (HIL) simulation testing and Rapid Control Prototyping (RCP) development.

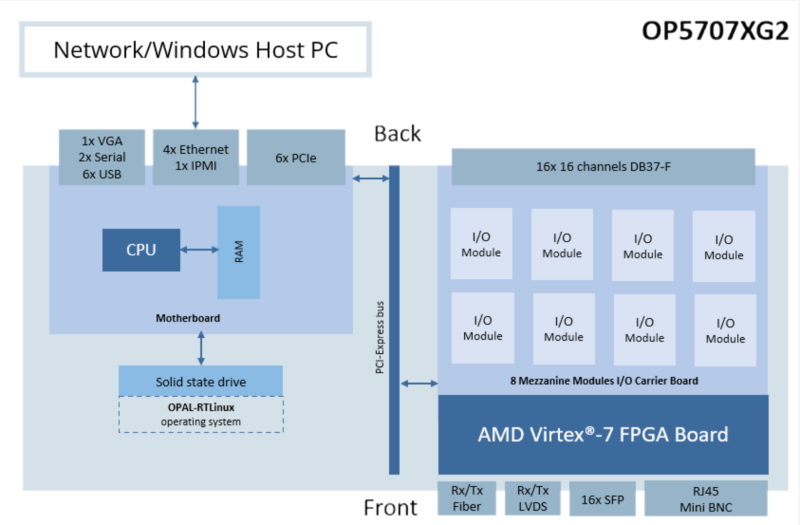

Product Composition
1. A single unit can be equipped with up to 16 high-performance Intel® Xeon® Gold processor cores and a Xilinx® Virtex® 7 FPGA board, configured with the OPAL-RT Linux real-time operating system (RTOS), delivering exceptional computing performance.
2. Its onboard expansion slots can accommodate up to 8 analog or digital I/O boards, supporting up to 128 analog or 256 digital high-speed I/O channels.
3. It supports LVDS/fiber synchronization and up to 16 channels of high-speed SFP optical fiber communication, used for data communication and clock synchronization between the main unit and expansion units.
4. It provides extensive communication protocol support for various industrial applications, including: IEC 61850, IEC 60870-5-104, IEEE C37.118, DNP3, ModBus, CAN, OPC UA/DA, FlexRay, ARINC-429, etc.
5. It enables quick connection to oscilloscopes via RJ45 and Mini-BNC interfaces; it is equipped with standard DB37 interfaces, providing convenient and fast I/O connections for HIL or RCP applications.
Specification
OP5707XG2-8V
处理器 | CPU | Intel® Xeon® Gold processor, 8 cores at 4.2 GHz |
Processor | FPGA | Xilinx®Virtex® 7 485T |
性能 | CPU | 最小仿真步长10μs Minimum simulation time step: 10 μs |
Performance | FPGA | 最小仿真步长100ns Minimum simulation time step: 100 ns |
I/O板卡 （单机最多8个扩展槽） I/O Boards (Up to 8 expansion slots per chassis) | 模拟量 Analog signals | 16通道/插槽（单机最多128通道） 16 channels/slot (max. 128 channels per unit) |
数字量 Digital signals | 32通道/插槽（单机最多256通道） 32 channels/slot (max. 256 channels per unit) | |
I/O监测 I/O Monitoring | Mini-BNC，最高16模拟量/数字量通道 Mini-BNC interface, supporting up to 16 analog/digital channels | |
高速光纤接口 High-Speed optical fiber interface | 16通道SFP高速光纤通信接口，最高5Gbps 16-channel SFP high-speed optical fiber communication interface, maximum 5 Gbps bandwidth | |
接口 | 标准 | Ethernet |
Interface | Standard | VGA |
键盘和鼠标 Keyboard and mouse | ||
可选 Options | IEC 61850、IEC 104、IEEE C37.118、DNP3、CAN、ModBus、OPC、FlexRay、LIN、MIL-STD-1553、ARINC-429 | |
…… | ||
尺寸 Dimension | 宽×深×高 Width×Depth× Height | 5U，477mm×493mm×224mm |
OP5707XG2-16V
处理器 | CPU | Intel® Xeon® Gold processor, 16 cores at 3.5 GHz |
Processor | FPGA | Xilinx®Virtex® 7 485T |
性能 | CPU | 最小仿真步长10μs |
Performance | FPGA | 最小仿真步长100ns |
I/O板卡 （单机最多8个扩展槽） I/O Boards (Up to 8 expansion slots per chassis) | 模拟量 Analog signals | 16通道/插槽（单机最多128通道） 16 channels per slot (max. 128 channels per unit) |
数字量 Digital signals | 32通道/插槽（单机最多256通道） 32 channels per slot (max. 256 channels per unit) | |
I/O监测 I/O Monitoring | Mini-BNC，最高16模拟量/数字量通道 Mini-BNC interface, supporting up to 16 analog/digital channels | |
高速光纤接口 High-Speed optical fiber interface | 16通道SFP高速光纤通信接口，最高5Gbps 16-channel SFP high-speed optical fiber communication interface, maximum 5 Gbps bandwidth | |
接口 | 标准 | Ethernet |
Interface | Standard | VGA |
键盘和鼠标 | ||
可选 Options | IEC 61850、IEC 104、IEEE C37.118、DNP3、CAN、ModBus、OPC、FlexRay、LIN、MIL-STD-1553、ARINC-429 | |
…… | ||
尺寸 Dimension | 宽×深×高 Options | 5U，477mm×493mm×224mm |
Product Features
l Unparalleled Computing Performance
The OP5700XG2 Simulator is equipped with the latest Intel® Xeon® Gold series processors and high-performance Xilinx® Virtex® 7 FPGA boards, delivering unparalleled computing performance. On the one hand, it enables simulation of larger-scale and more complex power grids or power electronic systems using limited CPU cores; on the other hand, it allows for smaller simulation time steps to achieve higher simulation accuracy with the same computing resources.
l New OPAL-RT Linux Real-Time Operating System
The OP5700XG2 Simulator is configured with the new OPAL-RT Linux real-time operating system (RTOS). Combined with Intel's latest technologies and OPAL-RT's unique power toolboxes, it enables engineers to benefit significantly from this unparalleled computing performance when simulating, testing, integrating and validating new products or solutions.
l Unparalleled Computing Performance
The OP5700XG2 Simulator is equipped with the latest Intel® Xeon® Gold series processors and high-performance Xilinx® Virtex® 7 FPGA boards, delivering unparalleled computing performance. On the one hand, it enables simulation of larger-scale and more complex power grids or power electronic systems using limited CPU cores; on the other hand, it allows for smaller simulation time steps to achieve higher simulation accuracy with the same computing resources.
l New OPAL-RT Linux Real-Time Operating System
The OP5700XG2 Simulator is configured with the new OPAL-RT Linux real-time operating system (RTOS). Combined with Intel's latest technologies and OPAL-RT's unique power toolboxes, it enables engineers to benefit significantly from this unparalleled computing performance when simulating, testing, integrating and validating new products or solutions.
