Next-Generation Flagship Real-Time Simulator

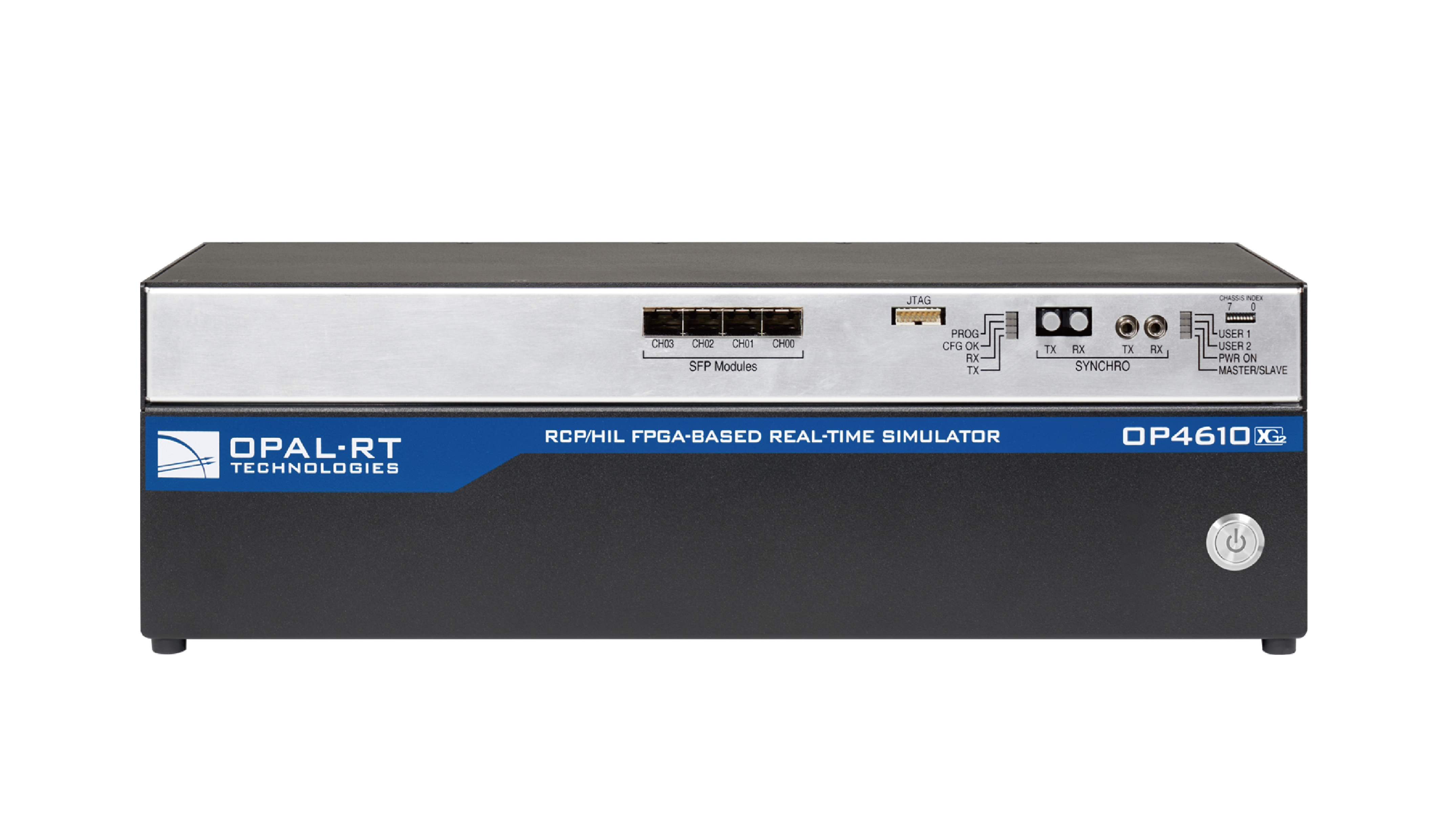

OP4610XG2-6V, as OPAL-RT's new flagship model, features up to six high-performance Intel® Core™ i5 processor cores and AMD Kintex™-7 FPGA boards; its onboard expansion slots support up to four analog or digital I/O boards, enabling up to 64 analog or 128 digital high-speed I/O channels, alongside 4 high-speed SFP fiber communication ports, meeting top-tier requirements for hardware-in-the-loop (HIL) simulation & testing and rapid control prototyping (RCP) development.

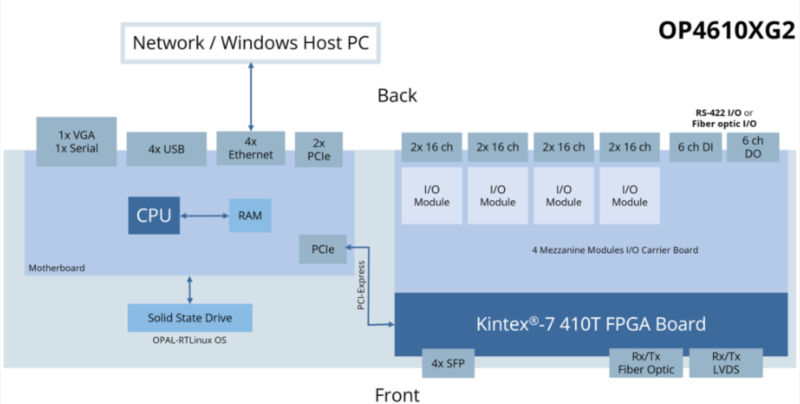

Product Components
（1） A single unit can be equipped with up to six high-performance Intel®CoreTM i5 processor cores and AMD KintexTM -7 FPGA boards, running the OPAL-RT Linux real-time operating system for exceptional computational power.
（2）Onboard expansion slots support up to four analog or digital I/O boards, enabling up to 64 analog channels or 128 digital channels of high-speed I/O.
（3）LVDS/fiber-optic synchronization and up to 4 high-speed SFP fiber-optic communication ports are supported for inter-device communication and clock synchronization.
Provides extensive support for industry-standard communication protocols, including: IEC 61850, IEC 60870-5-104, IEEE C37.118, DNP3, ModBus, CAN, OPC UA/DA, FlexRay, ARINC-429, etc.
Specifications
处理器 | CPU | Intel® Core™ i5 6-core @ 4.1 GHz |
Processors | FPGA | AMD Kintex™-7 410T |
性能 | CPU | 最小仿真步长10μs Minimum simulation step size: 10 μs |
Performance | FPGA | 最小仿真步长100ns Minimum simulation step size: 100 ns |
I/O板卡 （单机最多4个扩展槽） I/O board (Up to 4 expansion slots per chassis) | 模拟量 Analog quantity | 16通道/插槽（单机最多64通道） 16 channels/slot (up to 64 channels per chassis) |
数字量 Digital quantity | 32通道/插槽（单机最多128通道） 32 channels/slot (up to 128 channels per chassis) | |
内存和硬盘 Memory and hard drive | 16GB 内存，1TB 高速固态硬盘 16GB RAM, 1TB high-speed SSD | |
高速光纤接口 High speed fiber optic interface | 4通道SFP高速光纤通信接口，最高5Gbps 4-channel SFP high-speed fiber optic communication interface, up to 5Gbps | |
接口 | 标准 | Ethernet |
Interface | Standard | VGA |
键盘和鼠标 Keyboard and Mouse | ||
可选 Options | IEC 61850、IEC 104、IEEE C37.118、DNP3、CAN、ModBus、OPC、FlexRay、LIN、MIL-STD-1553、ARINC-429 | |
…… | ||
尺寸 Dimensions | 宽×深×高 Width x Depth x Height | 3U，483mm×280mm×140mm |
Product Features
Unparalleled Computing Performance
The OP4610XG2-6V simulator features the all-new Intel® Core™ i5 series processor and high-performance AMD Kintex™-7 FPGA board, delivering unparalleled computing performance. On one hand, it enables larger-scale and more complex power grid or power electronics system simulations using limited CPU cores; on the other hand, with the same computing resources, it allows for reduced simulation step sizes to achieve higher simulation accuracy.
All-New OPAL-RT Linux Real-Time Operating System
The OP4610XG2-6V simulator comes equipped with the all-new OPAL-RT Linux real-time operating system. Combined with Intel's latest technologies and OPAL-RT's unique power toolbox, engineers can greatly benefit from the unparalleled computing performance when simulating, testing, integrating, and validating new products or solutions.
Unparalleled Computing Performance
The OP4610XG2-6V simulator features the all-new Intel® Core™ i5 series processor and high-performance AMD Kintex™-7 FPGA board, delivering unparalleled computing performance. On one hand, it enables larger-scale and more complex power grid or power electronics system simulations using limited CPU cores; on the other hand, with the same computing resources, it allows for reduced simulation step sizes to achieve higher simulation accuracy.
All-New OPAL-RT Linux Real-Time Operating System
The OP4610XG2-6V simulator comes equipped with the all-new OPAL-RT Linux real-time operating system. Combined with Intel's latest technologies and OPAL-RT's unique power toolbox, engineers can greatly benefit from the unparalleled computing performance when simulating, testing, integrating, and validating new products or solutions.
