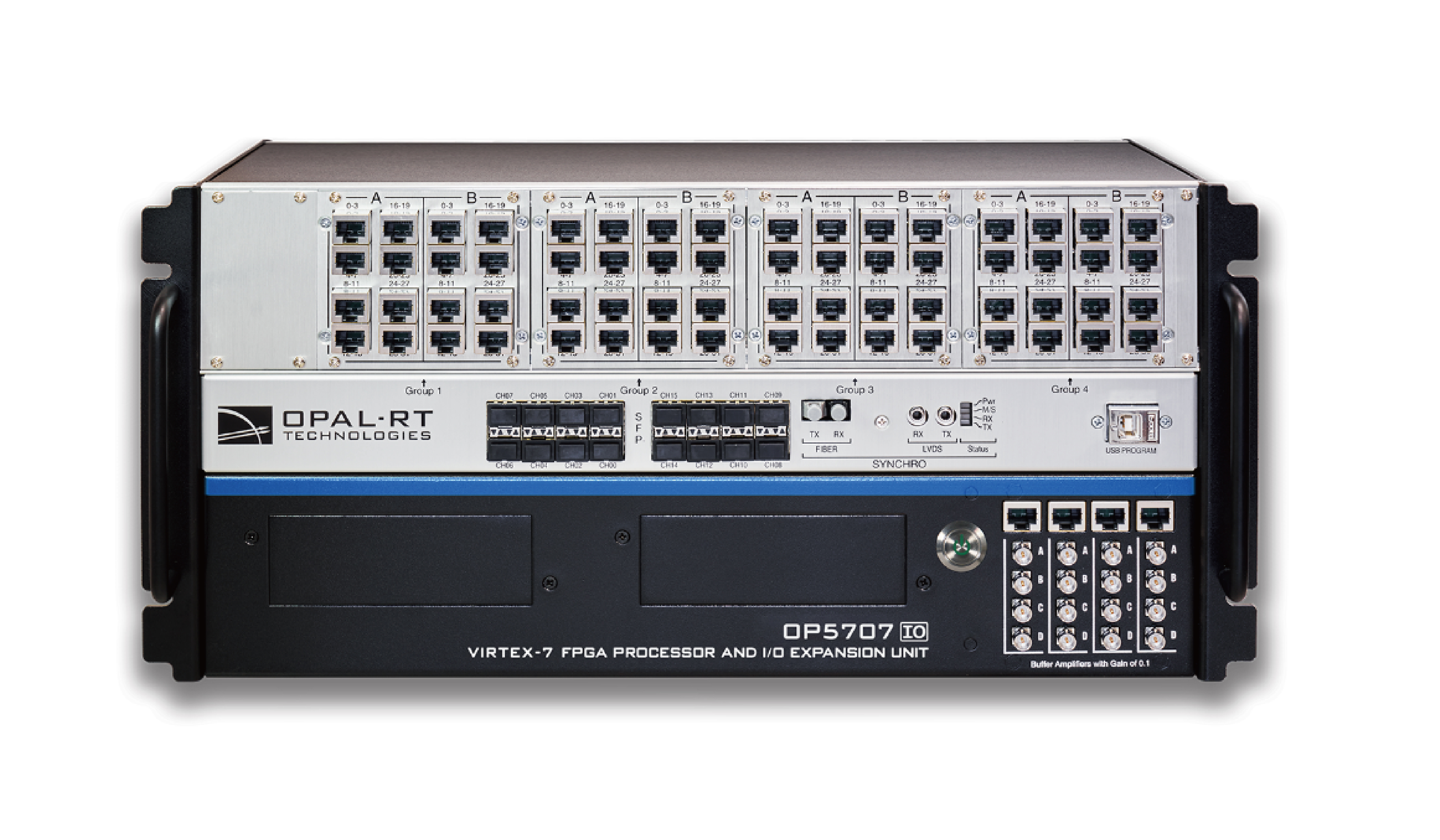

Next-Generation Flagship FPGA Simulator
The OP5707 IO is an I/O expansion simulator designed to interconnect with OPAL-RT real-time simulators for input/output expansion. It features a Xilinx® Virtex®-7 FPGA board and provides onboard expansion slots for up to 8 analog or digital I/O cards, supporting up to 128 analog or 256 digital high-speed I/O channels. It also supports 16 high-speed SFP fiber optic communication links and can be interconnected via PCIe with other OPAL-RT products such as the OP5705 XG, OP5707 XG, and OP4610 XG.

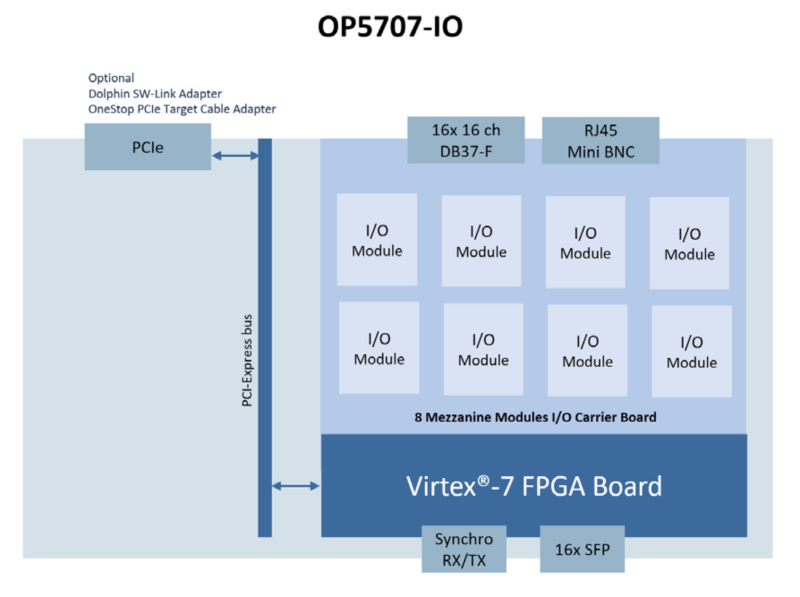

Product Composition
(1) The device can be equipped with Xilinx® Virtex® 7 FPGA boards, communicating with OPAL-RT real-time simulators via high-speed PCIe.
(2) The onboard expansion slots accommodate up to 8 analog or digital I/O boards, supporting up to 128 analog or 256 digital high-speed I/O channels.
(3) It supports LVDS/optical fiber synchronization and up to 16 high-speed SFP optical fiber communications for device-to-expansion-unit communication and clock synchronization.
(4) Quick oscilloscope connection via RJ45 and Mini-BNC; standard DB37 interface provides convenient and fast I/O connectivity for HIL or RCP applications.
Specification
计算单元 Computing Unit | FPGA | FPGA Xilinx®Virtex® 7 485T |
性能 Performance | FPGA | 最小仿真步长100ns Minimum simulation time step: 100 ns |
I/O板卡 （单机最多8个扩展槽） I/O Boards (Up to 8 expansion slots per chassis) | 模拟量 Analog signals | 16通道/插槽（单机最多128通道） 16 channels/slot (max. 128 channels per unit) |
数字量 Digital signals | 32通道/插槽（单机最多256通道） 32 channels/slot (max. 256 channels per unit) | |
I/O监测 I/O Monitoring | Mini-BNC，最高16模拟量/数字量通道 Mini-BNC interface, supporting up to 16 analog/digital channels | |
高速光纤接口 High-Speed optical fiber interface | 16通道SFP高速光纤通信接口，最高5Gbps 16-channel SFP high-speed optical fiber communication interface, maximum 5 Gbps bandwidth | |
接口 | 标准 | 高速光口 High-speed optical port |
Interface | Standard | DB37接口 DB37 interface |
RJ45接口 RJ45 interface 时钟同步接口Clock synchronization interface JTAG口 JTAG interface | ||
尺寸 Dimensions | 宽×深×高 Width × Depth × Height | 5U，477mm×493mm×224mm |
Product Features
The OP5707 IO FPGA Simulator is equipped with a high-performance Xilinx® Virtex® 7 FPGA board. On the one hand, it enables expansion of IO interfaces and optical fiber communication interfaces through the OP5707 IO Simulator; on the other hand, it can perform FPGA-based small time-step simulation of power electronic converters, MMC (Modular Multilevel Converter) and other topologies to achieve higher simulation accuracy.
