COMPISO System Unit 100-1GAMP4
Overview

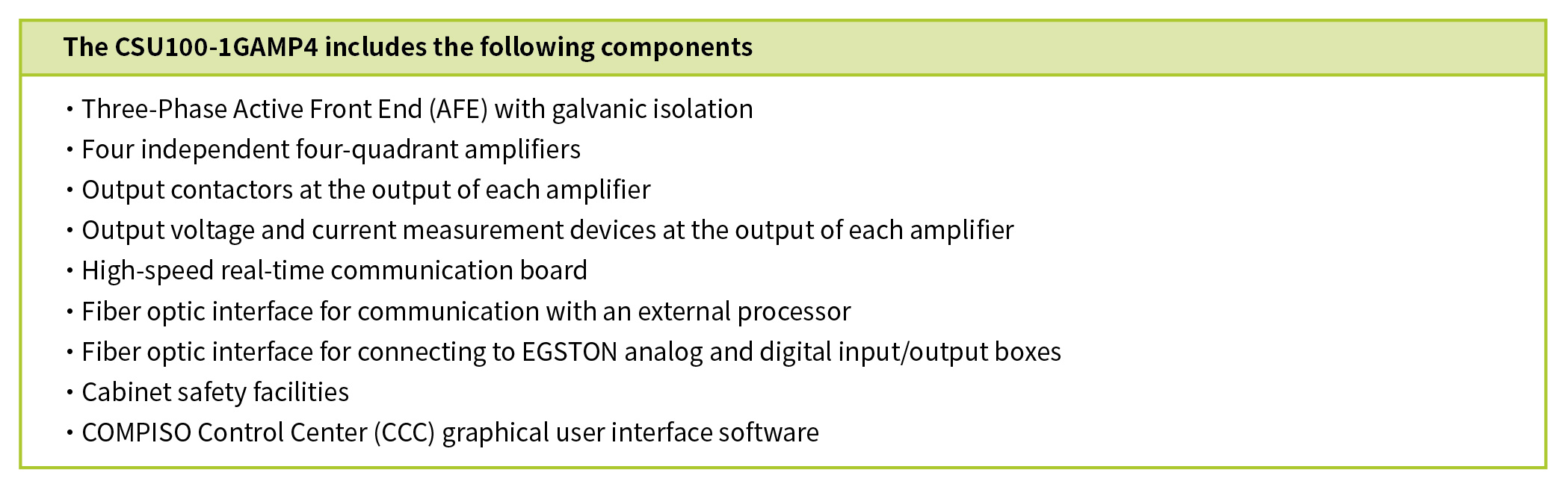

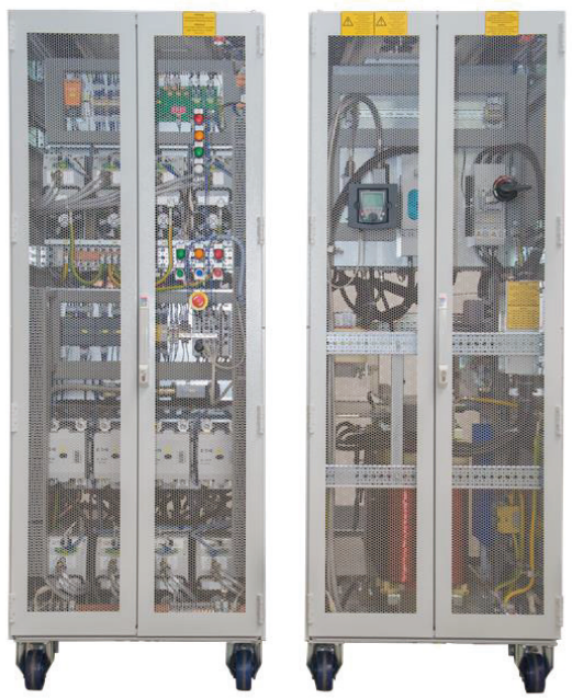

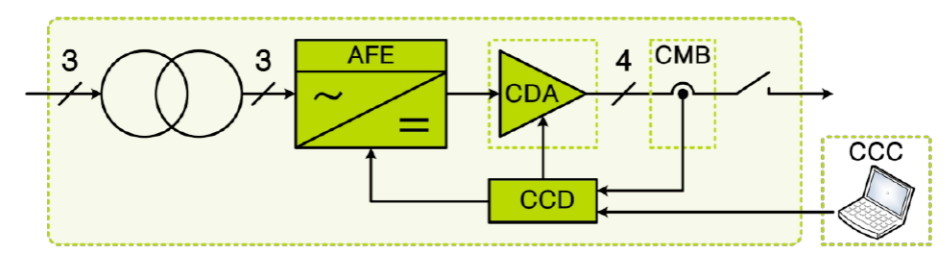

The COMPISO System Unit (CSU) 100-1GAMP4 is a comprehensive Power-Hardware-in-the-Loop (P-HIL) solution for power system testing. It is equipped with four independent four-quadrant digital power amplifiers, capable of outputting voltages spanning from DC to 5 kHz. The system offers multiple AC, DC, and Hardware-in-the-Loop (HIL) operation modes. System delivery includes the power path, necessary safety facilities, and the software programs required for system setup and operation.

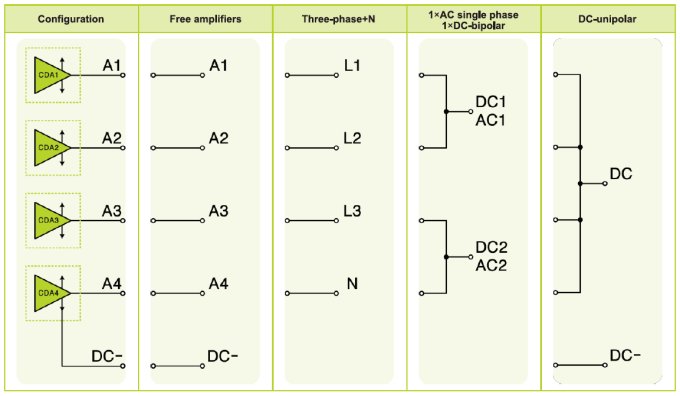

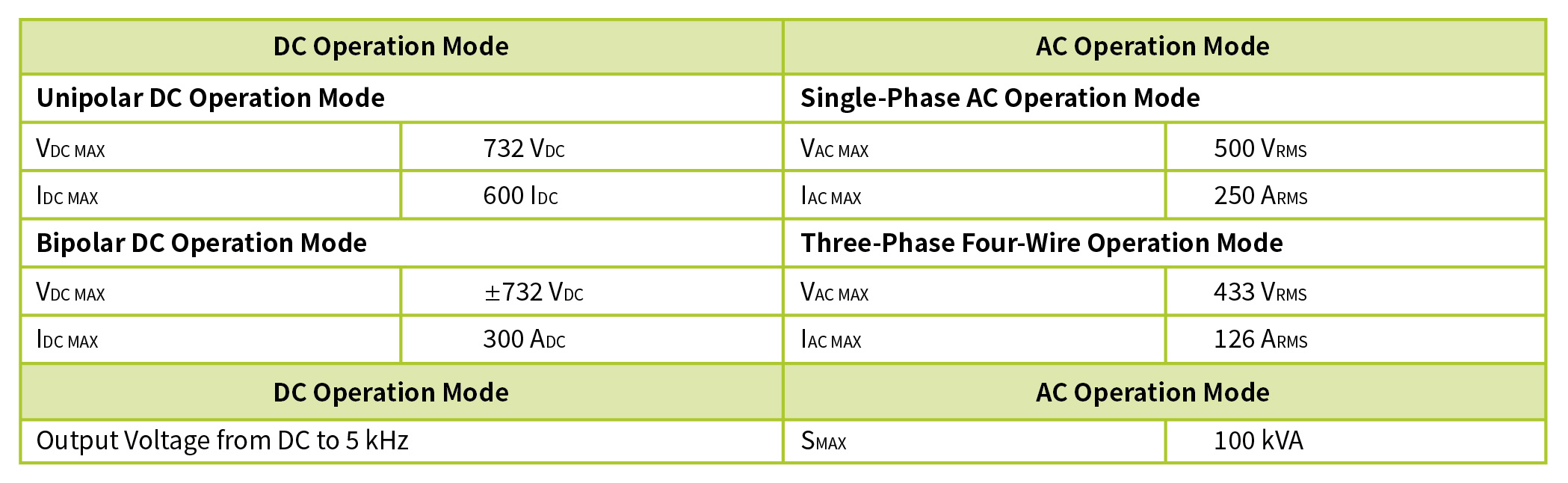

The CSU100-1GAMP4 can operate in various system modes, including AC, DC, Free Amplifier, and HIL. The operation mode defines the configuration method for the four COMPISO Digital Amplifiers (CDAs) within the system.



Data Sheet
