COMPISO System Unit 200-1GAMP6
Overview

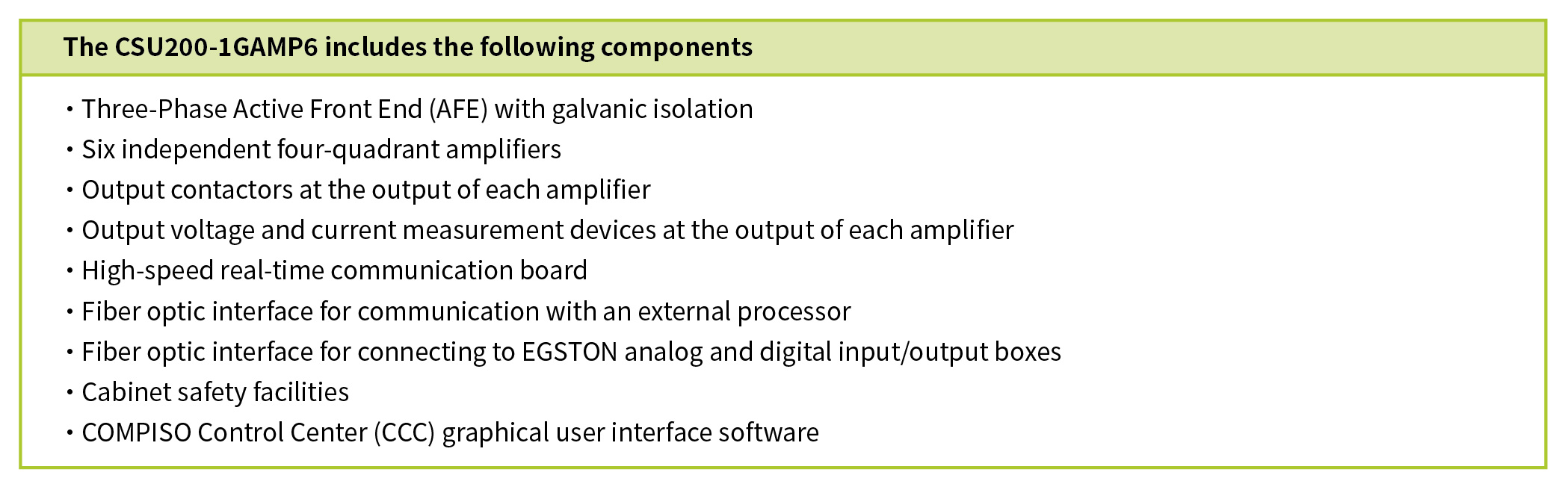

The COMPISO System Unit (CSU) 200-1GAMP6 is a comprehensive Power-Hardware-in-the-Loop (P-HIL) solution for power system testing. It is equipped with six independent four-quadrant digital power amplifiers, capable of outputting voltages spanning from DC to 5 kHz. The system offers multiple AC, DC, and Hardware-in-the-Loop (HIL) operation modes. System delivery includes the power path, necessary safety facilities, and the software programs required for system setup and operation.

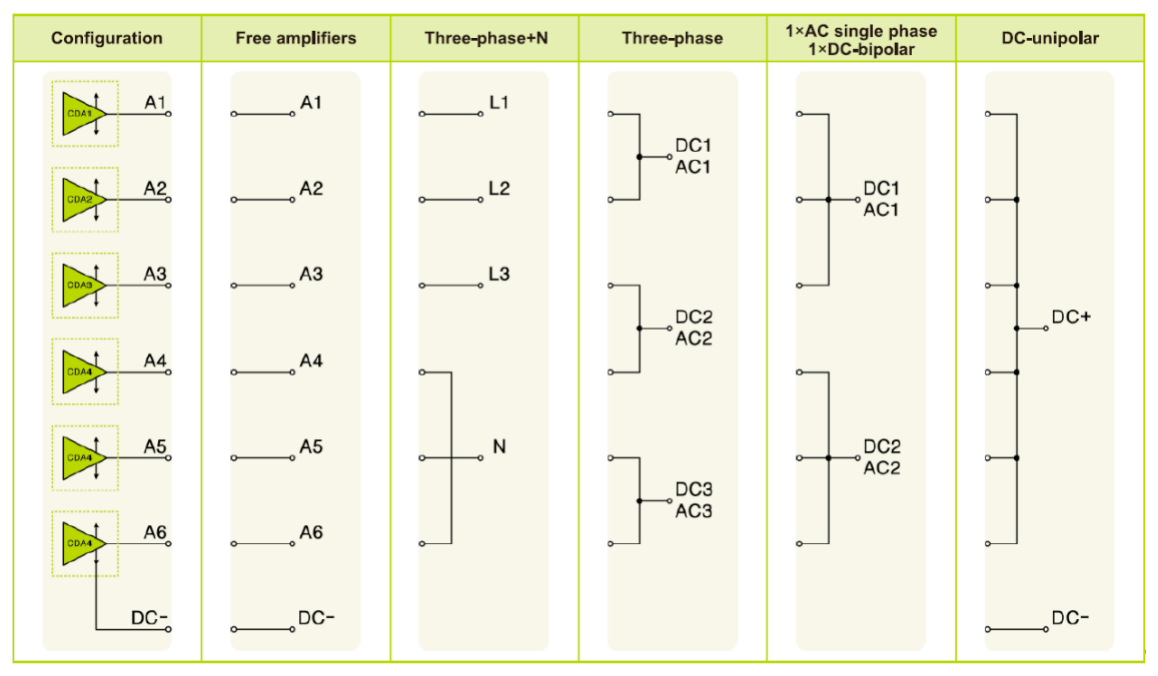

The CSU200-1GAMP6 can operate in various system modes, including AC, DC, Free Amplifier, and HIL. The operation mode defines the configuration method for the six COMPISO Digital Amplifiers (CDAs) within the system.

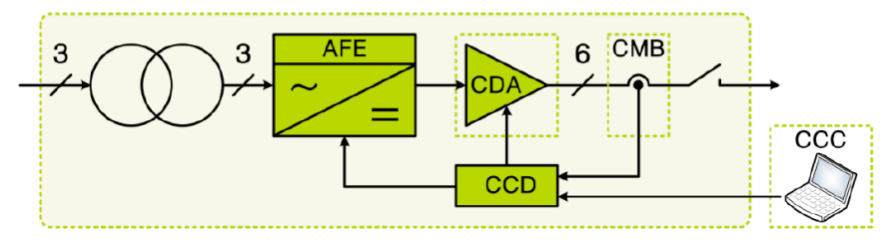

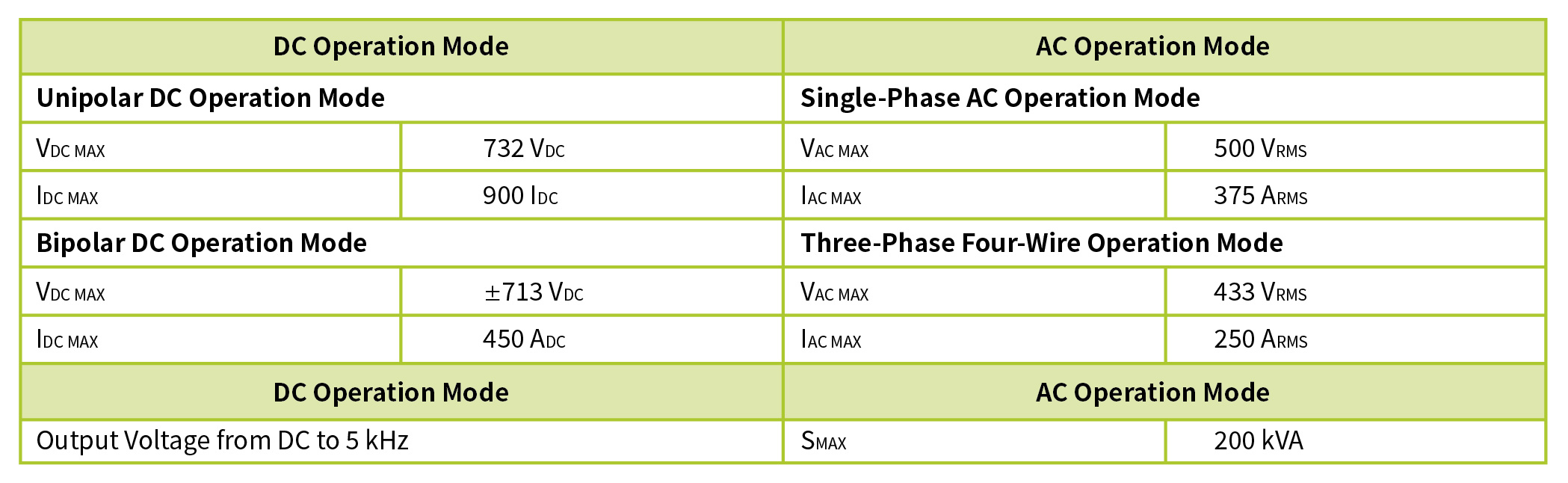

Data Sheet and CSU Topology


P-HIL Integrated Solution
